River Bank Protection Stranded Galvanized Rock Cage Woven Hexagonal Flood Stone Gabion Box

River Bank Protection Stranded Galvanized Rock Cage Woven Hexagonal Flood Stone Gabion Box

Large Image :  River Bank Protection Stranded Galvanized Rock Cage Woven Hexagonal Flood Stone Gabion Box

Product Details:
Place of Origin: CHINA
Brand Name: KN
Certification: ISO CE
Model Number: 1X1X1 2x1xx 3x1x1
Payment & Shipping Terms:
Minimum Order Quantity: 100pc
Price: USD 17-20
Packaging Details: pallets
Delivery Time: 7-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000mw per day
Detailed Product Description
Surface Treatment: Hot-dipped Galvanized Zinc Coating: ≥ 270g/m²
Size: 2m X 1m X 1m Application: Erosion Control, Retaining Walls, Landscaping
Elongation: ≥ 10% Wire Diameter: 3.05mm
Product_Name: Gabion Cages Material: Galvanized Steel Wire
Durability: Long-lasting Tensile Strength: 350-500N/mm²
Mesh Size: 80mm X 100mm 100x120mm Installation: Easy And Quick
Connectors: Binding Lacing Wire Assembly Method: Binding Wire
Package: Pallet Or In Bulk
Highlight:

galvanized rock cage woven

,

flood stone gabion box

,

galvanized stone gabion box

River Bank Protection Stranded Galvanised Coated Woven Hexagonal Flood Stone Gabion Box



Woven Gabion Cages

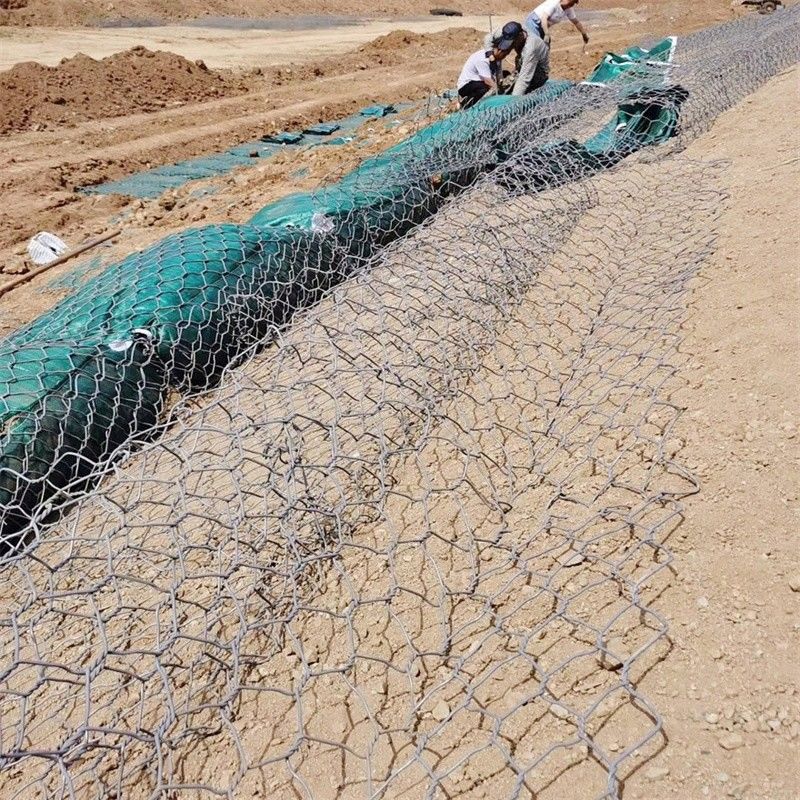

Engineered for hydraulic applications, these galvanized steel wire mesh structures provide permeable erosion control in riverbank stabilization and flood mitigation systems. Their flexible construction accommodates ground movement while maintaining channel integrity, with 80-100mm mesh openings optimized for stone retention and hydraulic pressure dissipation. Standard units (2m x1m x1m) facilitate rapid assembly in watercourse rehabilitation projects, complying with ASTM A975-20 specifications for submerged installations.

Feature 1: Economical, just put the stone into the cage and seal it;

Feature 2: Easy construction without the need for special techniques;
Feature 3: Strong ability to resist natural damage, erosion, and adverse weather conditions;
Feature 4: Can withstand large-scale deformation without collapsing;
Feature 5: The silt between the cracks of the cage stones is conducive to plant growth and can integrate with the surrounding natural environment;
Feature 6: It has good permeability and can prevent damage caused by hydrostatic pressure;
Feature 7: Save transportation costs. It can be folded up for transportation and assembled on the construction site;
Feature 8: Fast progress, conducive to rush work period: Multiple groups can be constructed simultaneously, in parallel, and in a streamlined manner.

Product Paramenters
Size
Wire Diameter
Diaphragm
Length
Width
Heigth
Sqm
Color
Surface Treatn
60*80mm
80*100mm
80*110mm
100*120mm
120*150mm


2.0-4.0mm
2.2mm,2.7mm,3.0mm,3.05mm is common
1
2m
1m
0.5m
7.5㎡
Silver

Dark

Green

Gray

Black
Hot dip galvanized

PVC coated

PE coated

Galfan
1
2m
1m
1m
11㎡
2
3m
1m
0.5m
10.5㎡
2
3m
1m
1m
16㎡
3
4m
1m
0.5m
14.5㎡


3
4m
1m
1m
21㎡



A new material structure applied to transportation, water conservancy, municipal engineering, landscaping, soil and water conservation and other engineering projects. The product varieties are classified according to their engineering purposes, including gabion nets for roads, alloy mesh bags, landscape design, retaining walls, bridge protection, coastal defense, embankment and river protection.



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
(1)30-100Sets make one Bundles,then wrapped by good quality Plastic Films outside
(2)Nude package
(3)Delivery by Wooden Tray.(one Tray loading about 1Tons)



Gabion Walls do help with water filtration, and this is one of their significant environmental benefits. Here’s how they contribute to water purification and management:

Water Filtration and Purification
Natural Filtration: The stones and rocks within the Gabion Wall act as a natural filter, trapping sediments, pollutants, and debris as water flows through. This helps in reducing the amount of pollutants entering water bodies.
Reducing Runoff: The permeable structure of Gabion Walls allows water to pass through, reducing surface runoff and promoting groundwater recharge,This helps in maintaining the natural water cycle and prevents flooding.
Supporting Vegetation: Over time, vegetation can grow between the stones in Gabion Walls. These plants can further filter water and absorb pollutants through their root systems

Additional Environmental Benefits
Erosion Control: Gabion Walls are highly effective in preventing soil erosion and stabilizing slopes, riverbanks, and shorelines, This helps in maintaining the integrity of the soil and preventing landslides.
Enhancing Biodiversity: The gaps between the stones in Gabion Walls provide habitats for small animals, insects, and plants, contributing to local biodiversity
Low Carbon Footprint: Gabion Walls are constructed using locally sourced natural stones or recycled materials, reducing transportation emissions and the overall carbon footprint

In summary, Gabion Walls play a crucial role in sustainable water management and environmental protection by facilitating natural water filtration, reducing runoff, and supporting biodiversity

River Bank Protection Stranded Galvanized Rock Cage Woven Hexagonal Flood Stone Gabion Box 0River Bank Protection Stranded Galvanized Rock Cage Woven Hexagonal Flood Stone Gabion Box 1River Bank Protection Stranded Galvanized Rock Cage Woven Hexagonal Flood Stone Gabion Box 2

River Bank Protection Stranded Galvanized Rock Cage Woven Hexagonal Flood Stone Gabion Box 3
