Woven Gabion Mattress for Water Control Projects

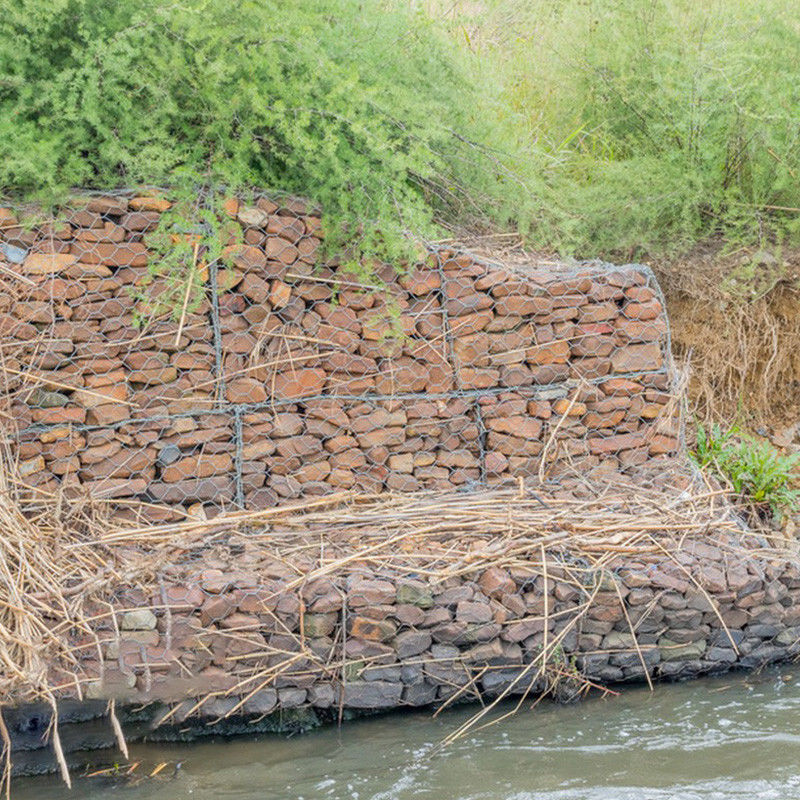

Our woven gabion mattresses are engineered for hydraulic applications, constructed from double-twisted hexagonal steel mesh (2.7-4.0mm diameter) with galvanized or PVC coating. The flat, rectangular units (standard size 2m×1m×0.3m) feature 80×100mm mesh openings filled with durable stone aggregate. Designed specifically for riverbank stabilization, channel protection, coastal revetments, and dam face armoring, these mattresses provide flexible, permeable erosion control. Internal diaphragms enhance structural integrity in flowing water conditions. The system complies with international standards (EN 10223-3) and can be customized to various thicknesses (150-500mm) for different hydraulic requirements.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
