PVC Coated Gabion Box Hexagonal Wire Mesh for Retaining Walls

PVC Coated Gabion Box Hexagonal Wire Mesh for Retaining Walls
PVC Coated Gabion Box Hexagonal Wire Mesh for Retaining Walls
video play

Large Image :  PVC Coated Gabion Box Hexagonal Wire Mesh for Retaining Walls

Product Details:
Place of Origin: Hebei ,China
Brand Name: KN
Certification: ISO CE
Model Number: KN-G05
Payment & Shipping Terms:
Minimum Order Quantity: 100 boxes
Price: USD 1.38-USD 2.66/sqm
Packaging Details: Plastic bags
Delivery Time: 5-10 work days
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 50000 sqm each week
Contact Now
Detailed Product Description
Keyword: Gabion Box Roll Length: 1-50m
Lacing Wire: 2.2mm Metal Type: Iron
Mesh Length: 2m Weave: Gabion Matresses,Retaining Wall
Wire Dia: 1.8-4.0mm Technics: Woven
Pvc Coating Color: Green, Blue, Grey, Etc. Daily Output: 50000 Square Meters
Frame Material: Metal
Highlight:

PVC coated gabion wire mesh

,

hexagonal wire mesh for retaining walls

,

gabion box with PVC coating

PVC Coated Hexagonal Twist Weave Steel Gabion Box Wire Mesh Retaining Wall Blocks
Product Specifications
Attribute Value
Keyword Gabion Box
Roll Length 1-50m
Lacing Wire 2.2mm
Metal Type Iron
Mesh Length 2m
Weave Gabion matresses, Retaining wall
Wire Diameter 1.8-4.0mm
Technics Woven
PVC Coating Color Green, Blue, Grey, Etc.
Daily Output 50000 Square meters
Frame Material Metal
Product Description

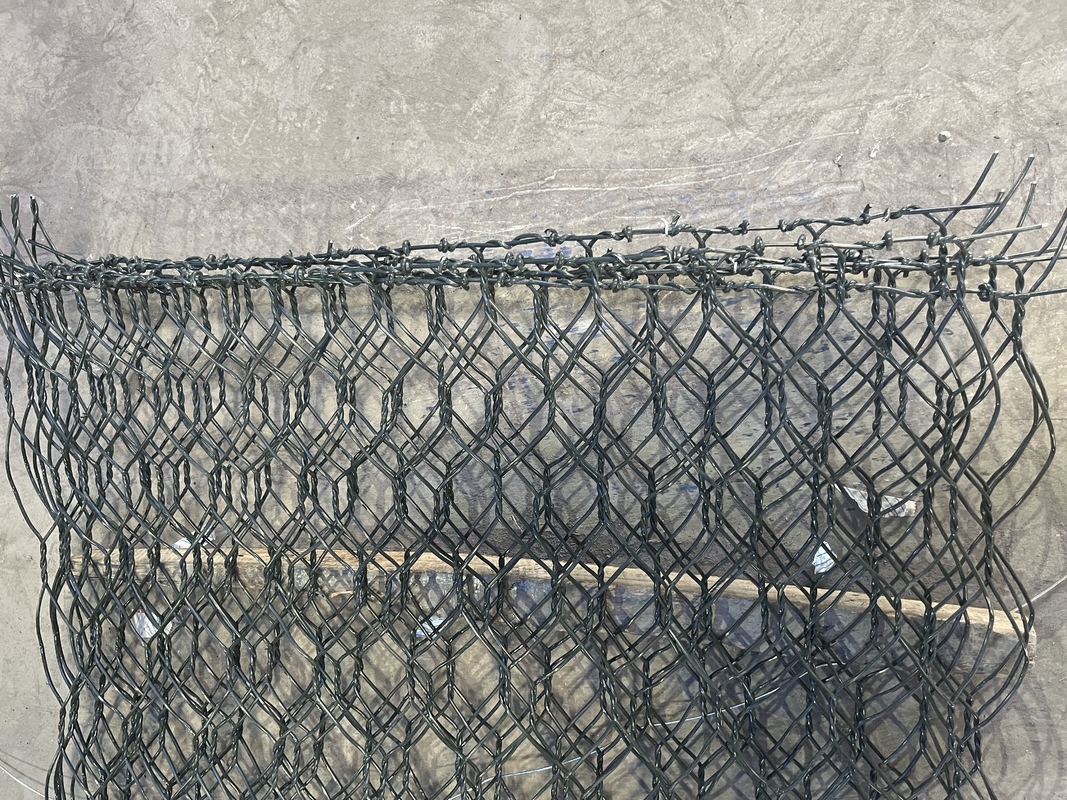

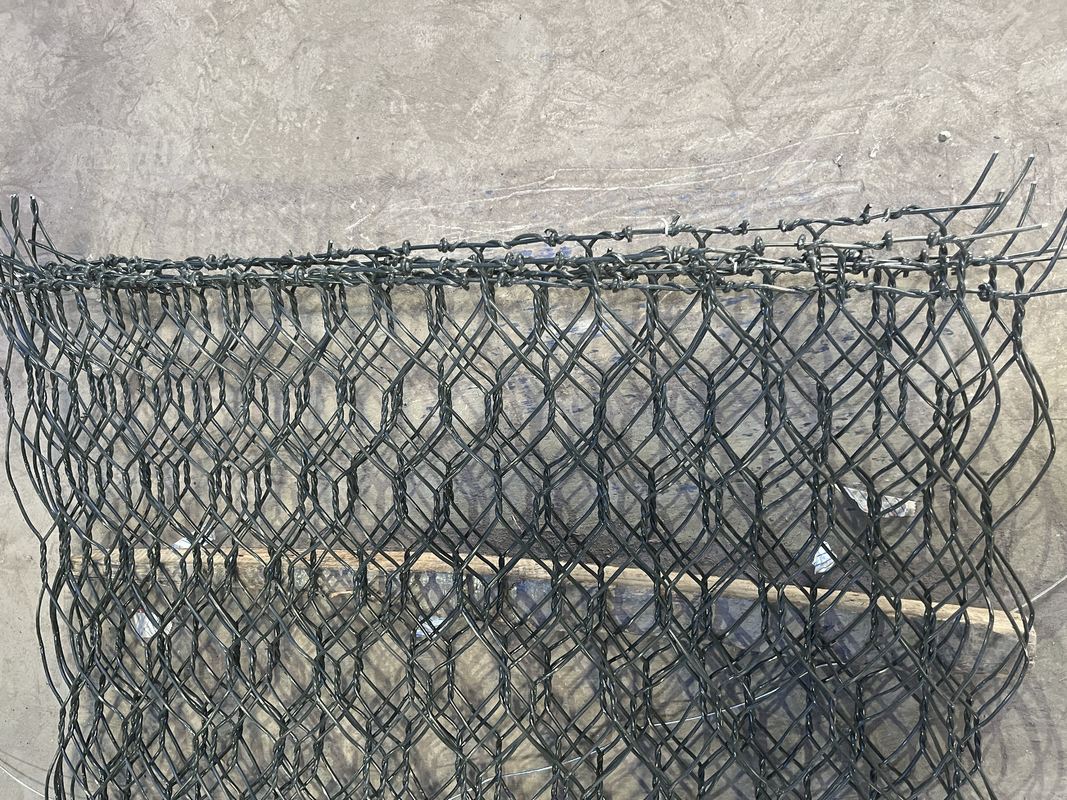

Gabion boxes are made of triple twist hexagonal woven wire mesh. Gabions stand out as the simple, efficient and economical solution, as the cages are simply filled with natural stone and also proven as environmentally friendly.

We design and supply Gabion Box made of double twisted hexagonal wire mesh or welded wire mesh. This kind of mesh can be customized not only in shape and size, but can also include additional reinforcement parts for increased strength. One of our clients requested steel rope reinforcement in the border and middle positions. Gabions can be supplied in roll or box form.

PVC Coated Gabion Box Hexagonal Wire Mesh for Retaining Walls 0
Technical Specifications
Mesh Size (mm) Number of Diaphragm Length (m) Width (m) Height (m) Volume (m³) Tolerance Color Wire Diameter (mm)
60×80 1 2.0 1.0 0.3 0.6 Length±5%
Width±5%
Height±5%		 Blue
Red
Green
Black		 2.0-4.0
80×100 1 2.0 1.0 0.5 1.0
80×120 1 2.0 1.0 1.0 2.0
100×120 2 3.0 1.0 0.3 0.9
120×150 2 3.0 1.0 0.5 1.5
2 3.0 1.0 1.0 3.0
3 4.0 1.0 0.3 1.2
3 4.0 1.0 0.5 2.0
3 4.0 1.0 1.0 4.0
1 2.0 0.5 0.5 0.5
2 3.0 0.5 0.5 0.75
Custom specifications available. Please contact us for special requirements.
PVC Coated Gabion Box Hexagonal Wire Mesh for Retaining Walls 1
Technical Standards
  • According to ASTM and EN standards, the diameter of low-carbon steel wire varies according to engineering design requirements
  • Standard wire diameter range: 2.0-4.0mm with tensile strength not less than 38kg/m²
  • Zinc coating weight generally exceeds 230g/m²
  • Edge wire diameter is typically greater than mesh wire diameter
  • Double stranded section length minimum 50mm to ensure anti-corrosion layer integrity
