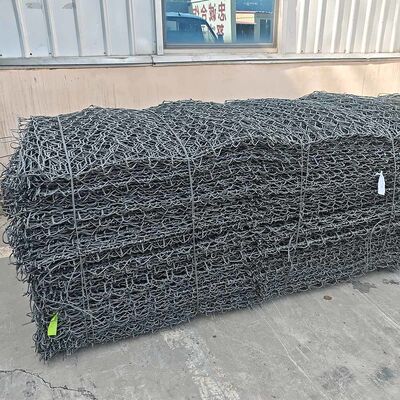

Gabion Stones Cage Retaining Wall Strong Screen Hexagonal Wire Mesh Baskets

Large Image : Gabion Stones Cage Retaining Wall Strong Screen Hexagonal Wire Mesh Baskets

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion wire mesh

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 35-45
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now

Detailed Product Description

Product Name:	Gabion Stones Cage Retaining Wall Strong Screen Hexagonal Wire Mesh Baskets	Key Words:	Gabion Wire Mesh
Diameter:	2.0mm-4.0mm	Package:	With Pallet, Or As Per Requirement
Lacing Wire:	2.0mm	Application:	Retaining Walls, Erosion Control, River Training, Landscaping, Etc.
Wire Diameter:	2.0-4.0mm	Mesh Type:	80mm*100mm
Mesh Panel Size:	2x1x1m	Usage:	Retaining Walls, River Bank Protection, Erosion Control
Highlight:	hexagonal wire mesh gabion baskets , gabion stones retaining wall screen , strong wire mesh gabion cages

Gabion Stones Cage Retaining Wall Strong Screen Hexagonal Wire Mesh Baskets

As a specialized geotechnical protection product, gabion wire mesh is crafted into box-shaped containers or baskets using premium materials—including hot-dip galvanized steel wire, Galfan (zinc-aluminum alloy) wire, and PVC-clad steel wire. When filled with rubble or stone aggregates, it functions to curb soil erosion and confine soil particles effectively. A notable variant is the flat-type gabion, often referred to as "River Gabions," which is extensively deployed in riverine areas. It proves particularly valuable for large-scale flat or sloped zones along river courses where soil erosion, loss, or scouring poses significant threats.

These gabion products adopt precision hexagonal mesh weaving, endowing them with a unique combination of flexibility and high structural strength. They exhibit superior tensile performance, robust corrosion resistance, and exceptional erosion resistance, making them highly adaptable to adverse environmental conditions such as saline-alkali lands, arid windy-sandy regions, and high-humidity coastal areas. Additionally, they support customized mesh sizes and wire diameters to meet diverse project requirements, with a typical service life ranging from 15 to 30 years, ensuring long-term reliability for various engineering applications.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)

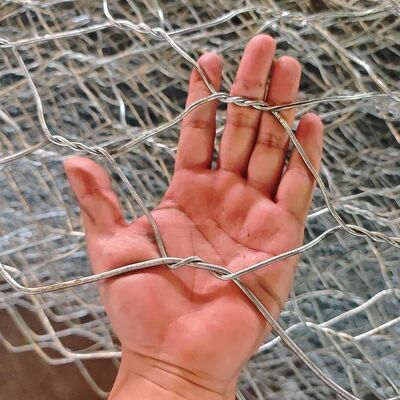

Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Gabion wire mesh can be used for slope protection, foundation pit support, network shotcreting on the rock surface of the mountain (refers to the protection measures taken on the slope to prevent the slope from weathering erosion and rainfall erosion from the surface to the inside), slope greening. It can also be made into cages and net mats, which can be used for anti erosion protection of rivers, dams and seawalls, as well as net boxes for reservoir and river closure.

gabion specifications			Mesh hole modle
			8x10cm		6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated		Galvanized or PVC coated
			Mesh diameter	Zinc	Mesh diameter	Zinc
2	1	1	2.7mm	>245g/m²	2.0mm	>215g/m²
3	1	1	Side wire diameter	Zinc	Side wire diameter	Zinc
4	1	1	3.4mm	>265g/²	2.7mm	>245g/m²
6	1	1	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m

Gabion Stones Cage Retaining Wall Strong Screen Hexagonal Wire Mesh Baskets 0
