Double Twisted Flexible Corrosion Resistant Gabion Retaining Wall for Erosion Control

Large Image : Double Twisted Flexible Corrosion Resistant Gabion Retaining Wall for Erosion Control

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE ISO
Model Number:	2X1X1 3X1X1 4X1X1 6X2X0.3

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 12-17
Packaging Details:	pallets of Double Twisted Gabion Flexible Durable Versatile Stone Retaining Wall Based Approach To Erosion Control Use Mountain
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	1000 pc need 7 days

Contact Now

Detailed Product Description

Features:	Flood Bank Or Guiding Bank	Product Name:	Double Twisted Gabion Flexible Durable Versatile Stone Retaining Wall Based Approach To Erosion Control Use Mountain
Stock:	Have Large In Stock	Tensile Strength:	350-550N/mm2
Customized:	Avaliable	Wire Diameter:	2.7mm
Zinc:	>275g/m²	Cage Size:	111m,211m,311m,411m
Net Wire:	Popular 2.7mm	Advantages:	Easy Install, Long Using Life
Twist:	Double Twisting	Selvage Wire:	3.4mm
Highlight:	double twisted gabion retaining wall , flexible gabion erosion control , versatile stone retaining wall

Double Twisted Gabion - Flexible Stone Retaining Wall for Erosion Control

Professional gabion solutions for mountain slope protection and erosion control applications.

Certified Quality & Design Life

All gabions supplied are independently tested by the British Board of Agreement (BBA), ensuring exceptional durability and longevity:

Galfan (95% Zn / 5%) - CLASS A Coat Weight: Design life up to 70 years in mild environments

PVC coated on heavily galvanised wires - Design life up to 120 years in mild environments

Key Features & Benefits

High Durability - Made from galvanized or PVC-coated wire for superior corrosion resistance
Flexible Structure - Hexagonal design adapts to ground movement without losing structural integrity
Versatile Applications - Suitable for construction, landscaping, and riverbank protection projects
Eco-Friendly Solution - Promotes natural vegetation growth through the porous mesh structure
Customizable Sizes - Available for various gabion basket and box requirements
Aesthetic & Functional - Ideal for decorative garden walls and functional erosion control systems

Technical Specifications

Mesh Sizes (mm)	Length (M)	Width (M)	Depth (M)	Capacity (m³)	Diaphragms	Wire Diameter
60×80 80×100 100×120	4	2	0.3	2.4	3	Mesh Wire: 2.0mm, 2.2mm, 2.5mm, 2.7mm, 3.05mm 2.0/3.0mm, 2.2/3.2mm 2.5/3.5mm, 2.7/3.7mm Selvedge Wire: 2.5mm, 2.7mm, 3.2mm, 3.4mm, 3.8mm 2.5/3.5mm, 2.7/3.7mm 3.2/4.2mm, 3.4/4.4mm Lacing Wire: 2.0mm, 2.2mm 2.0/3.0mm, 2.2/3.2mm
	6	2	0.3	3.6	5
	4	2	0.23	1.84	3
	6	2	0.23	2.76	5
	2	1	0.5	1	1
	3	1	0.5	1.5	2
	4	1	0.5	2	3
	2	1	1	2	1
	3	1	1	3	2
	4	1	1	4	3

Other specifications available through custom processing

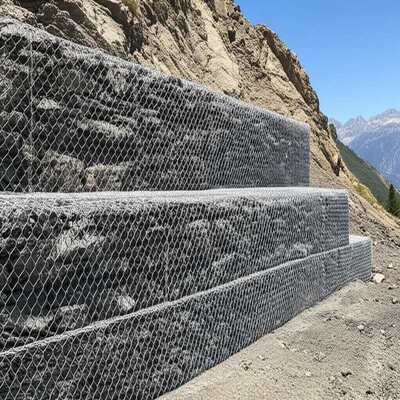

Mountain Slope Protection Applications

The primary application of our Gabion Basket by Roll is slope protection in mountainous regions, effectively preventing landslides and mudslides through:

Soil Stabilization - Baskets filled with stones create rigid structures that hold soil in place during heavy rains
Water Erosion Reduction - Porous design allows water passage while retaining soil and debris
Enhanced Safety - Provides stable barriers to protect infrastructure, roads, and communities near unstable slopes

Installation Process

Site Preparation - Clear the slope of debris and ensure level ground surface
Unrolling - Unroll gabion baskets directly on the slope, securing with stakes or anchors
Filling - Fill baskets with stones or suitable materials, packing tightly for maximum stability
Final Securing - Secure baskets with additional fasteners and interconnect to form cohesive structures

Professional Partnership & Services

As a professional manufacturer, we are committed to providing high-quality gabion basket solutions for global water conservancy and environmental protection projects. We maintain close cooperation with government departments worldwide and have provided reliable product support for numerous water conservancy and environmental protection initiatives.
